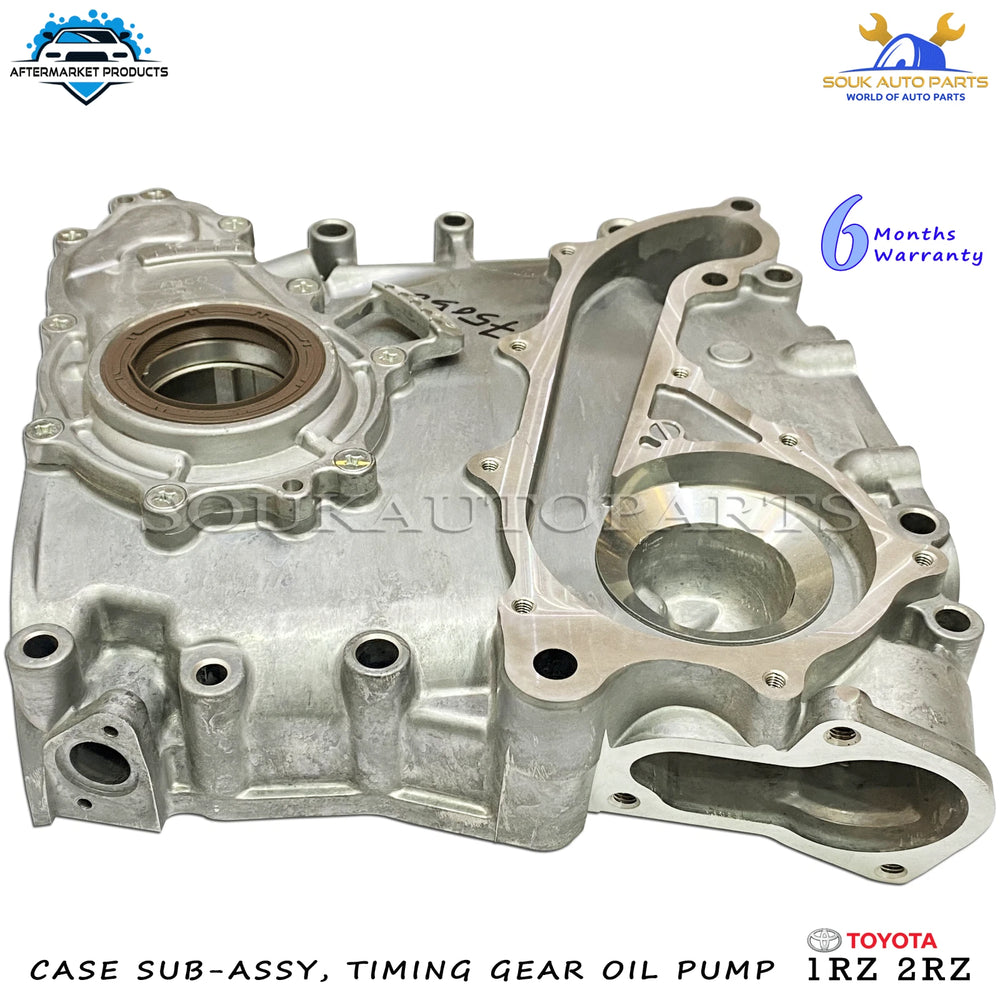

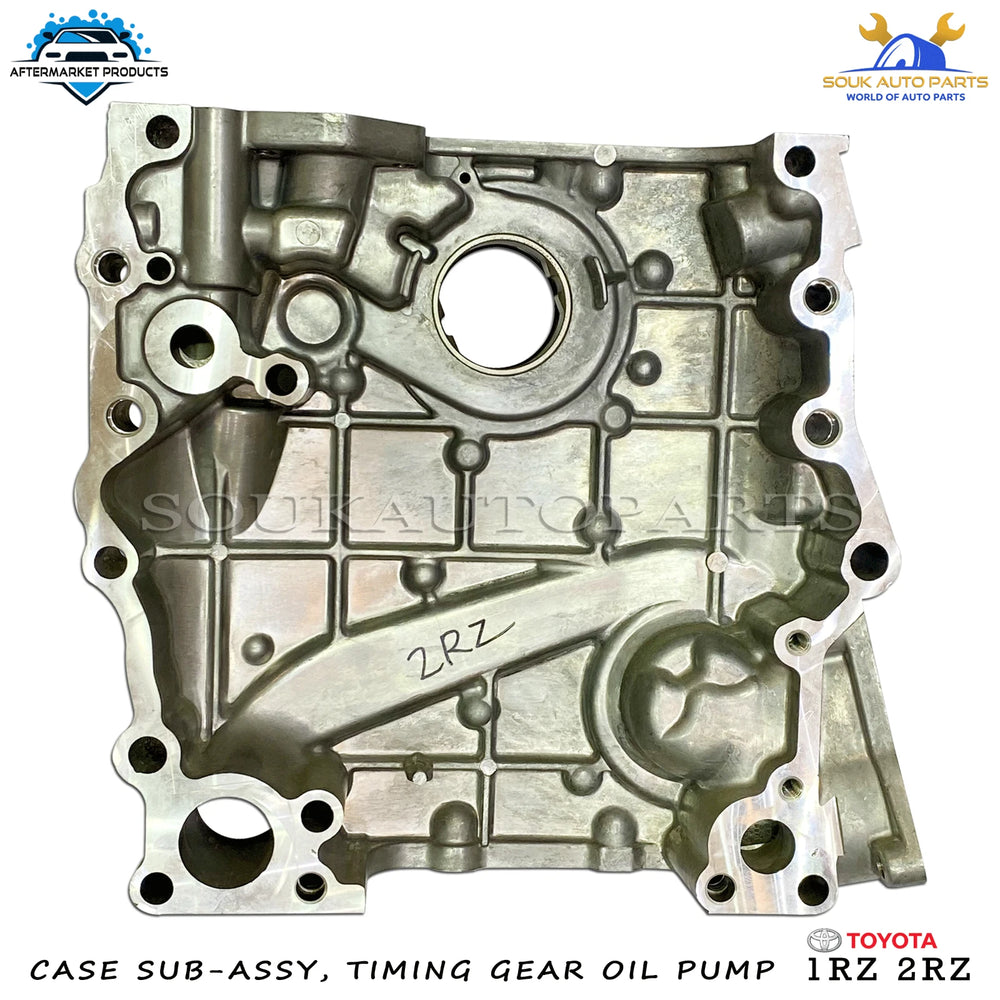

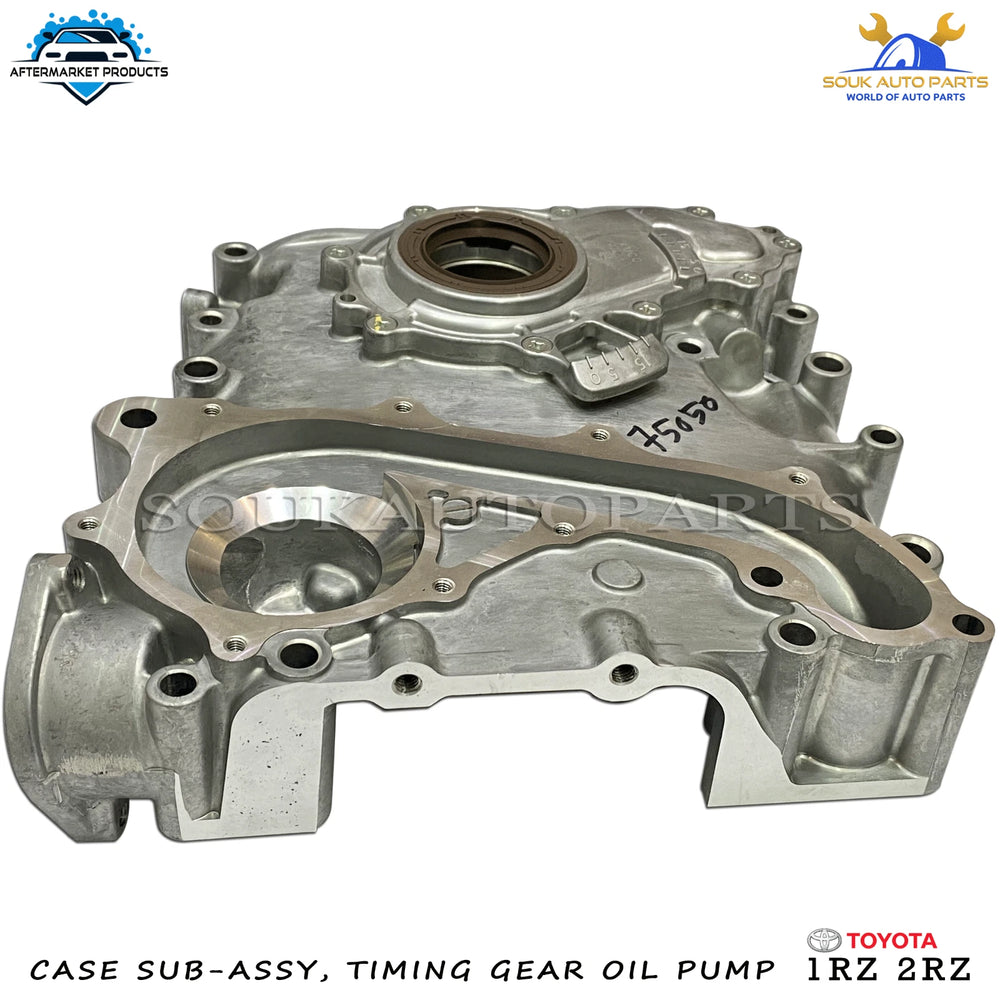

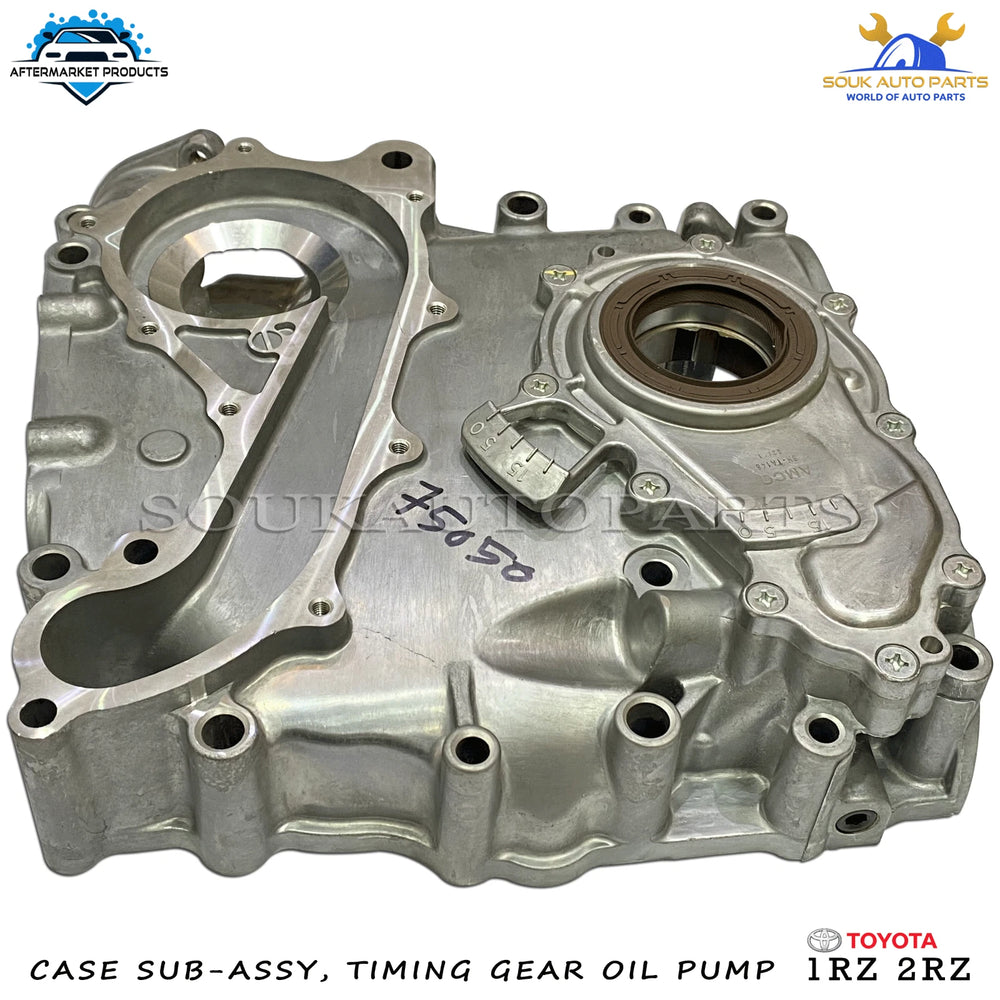

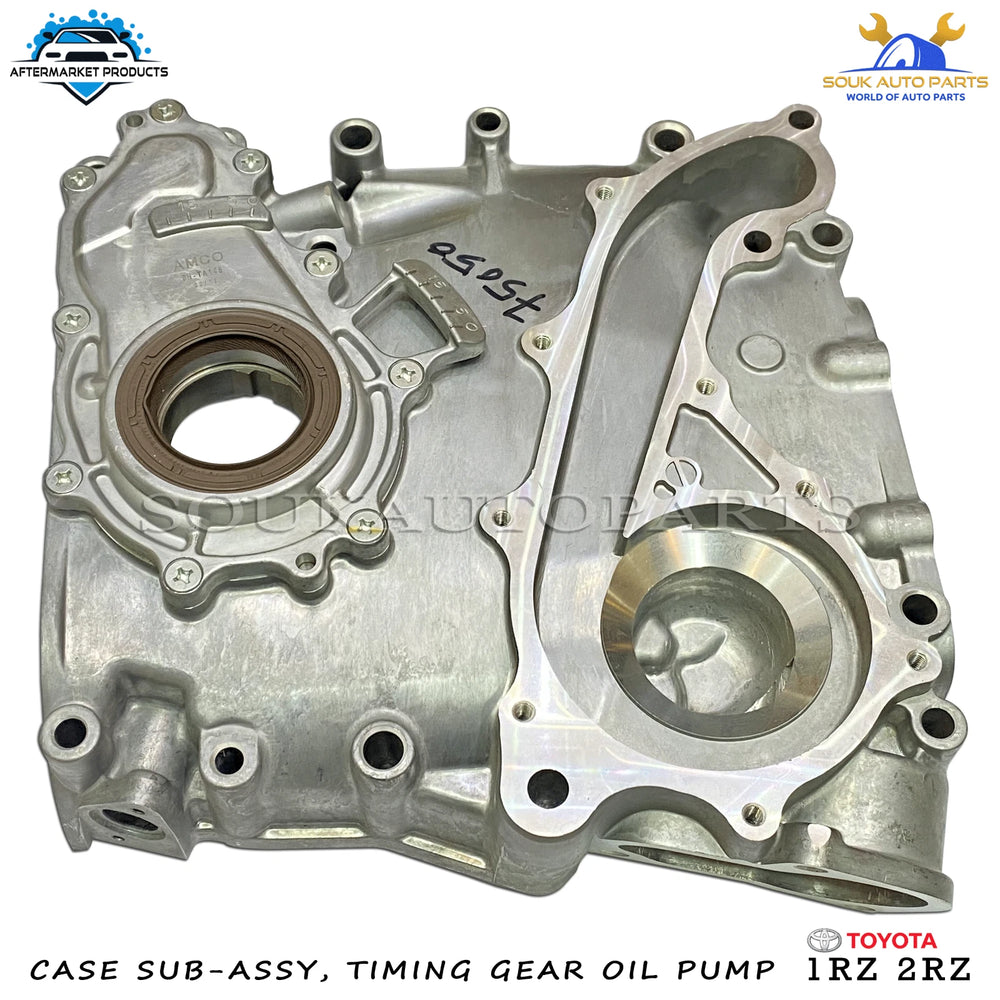

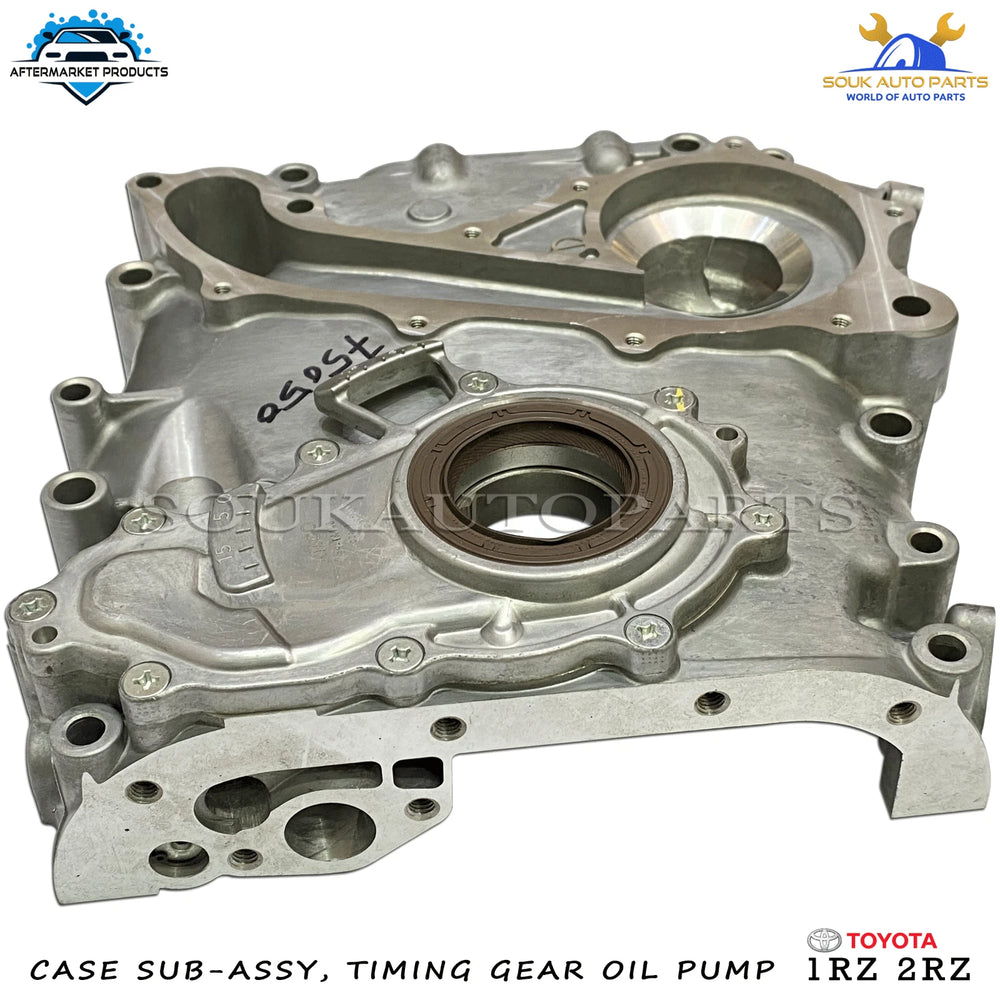

11301-75050 CASE SUB-ASSY, TIMING GEAR OIL PUMP For TOYOTA TACOMA HILUX 1RZ 2RZ
11301-75050 CASE SUB-ASSY, TIMING GEAR OIL PUMP For TOYOTA TACOMA HILUX 1RZ 2RZ
11301-75050 CASE SUB-ASSY, TIMING GEAR OIL PUMP For TOYOTA TACOMA HILUX 1RZ 2RZ
11301-75050 CASE SUB-ASSY, TIMING GEAR OIL PUMP For TOYOTA TACOMA HILUX 1RZ 2RZ
11301-75050 CASE SUB-ASSY, TIMING GEAR OIL PUMP For TOYOTA TACOMA HILUX 1RZ 2RZ
11301-75050 CASE SUB-ASSY, TIMING GEAR OIL PUMP For TOYOTA TACOMA HILUX 1RZ 2RZ

11301-75050 CASE SUB-ASSY, TIMING GEAR OIL PUMP For TOYOTA TACOMA HILUX 1RZ 2RZ

$89.00
$89.00
(-0%)
Subtotal: $89.00
SKU: 11301-75050 CASE SUB-ASSY, TIMING GEAR OIL PUMP
Weight: 3.0 kg
Tags: / / / / / / / / / / / /
Description

DISPATCHED TIME - 1 WORKING DAY

ESTIMATED DELIVERY TIME:

USA: Normally takes 3-5 Working Days Maximum.

UK & EUROPEAN UNION: 3-6 Working Days Maximum.

FOR OTHER DESTINATION: Within 1 Week Maximum.

ITEM DESCRIPTION:

Item: 11301-75050 CASE SUB-ASSY, TIMING GEAR OIL PUMP TOYOTA 1RZ 2RZ

Engine code: 1RZ 2RZ 2.0 & 2.4 LTR PETROL

Part Number: 11301-75050, 1130175050, 11301-75030, 1130175030

Condition: BRAND NEW HIGH QUALITY AFTERMARKET

Compatible Models: TOYOTA HILUX, DYNA, HIACE, REGIUS & TOYOACE

Warranty: 6 MONTHS WARRANTY.

Part Specifications

  • OEM Part Number: 11301-75050

  • Interchangeable / Cross-Reference Numbers: 11301-75030, 11301-75010, 15103-75051, AISIN TCT-070

  • Component Type: Engine Front Timing Cover & Integrated Oil Pump Housing

  • Material: Die-cast aluminum alloy

  • Included Provisions: Machined pocket for oil pump rotors, front main crankshaft seal recess, and mounting points for the water pump and oil galleries

Engine Compatibility

  • 1RZ / 1RZ-E: 2.0-Liter Inline-4 Gasoline

  • 2RZ / 2RZ-E / 2RZ-FE: 2.4-Liter Inline-4 Gasoline

Vehicle Applications

Vehicle Model Model Years Chassis Code Engine
Toyota Tacoma 1995–2004 RZN140, RZN150, RZN161, RZN191 2.4L 2RZ-FE
Toyota Hilux Pick-up 1997–2005 RZN142, RZN147, RZN152, RZN167 2.0L 1RZ / 2.4L 2RZ
Toyota HiAce / Commuter 1989–2004 RZH101, RZH102, RZH103, RZH104, RZH111, RZH125 2.0L 1RZ / 2.4L 2RZ
Toyota Dyna / ToyoAce 1995–2003 RZY220, RZY230 2.0L 1RZ / 2.4L 2RZ
Toyota Regius / Regius Ace 1997–2004 RCH42, RZH100, RZH110, RZH112 2.0L 1RZ / 2.4L 2RZ
