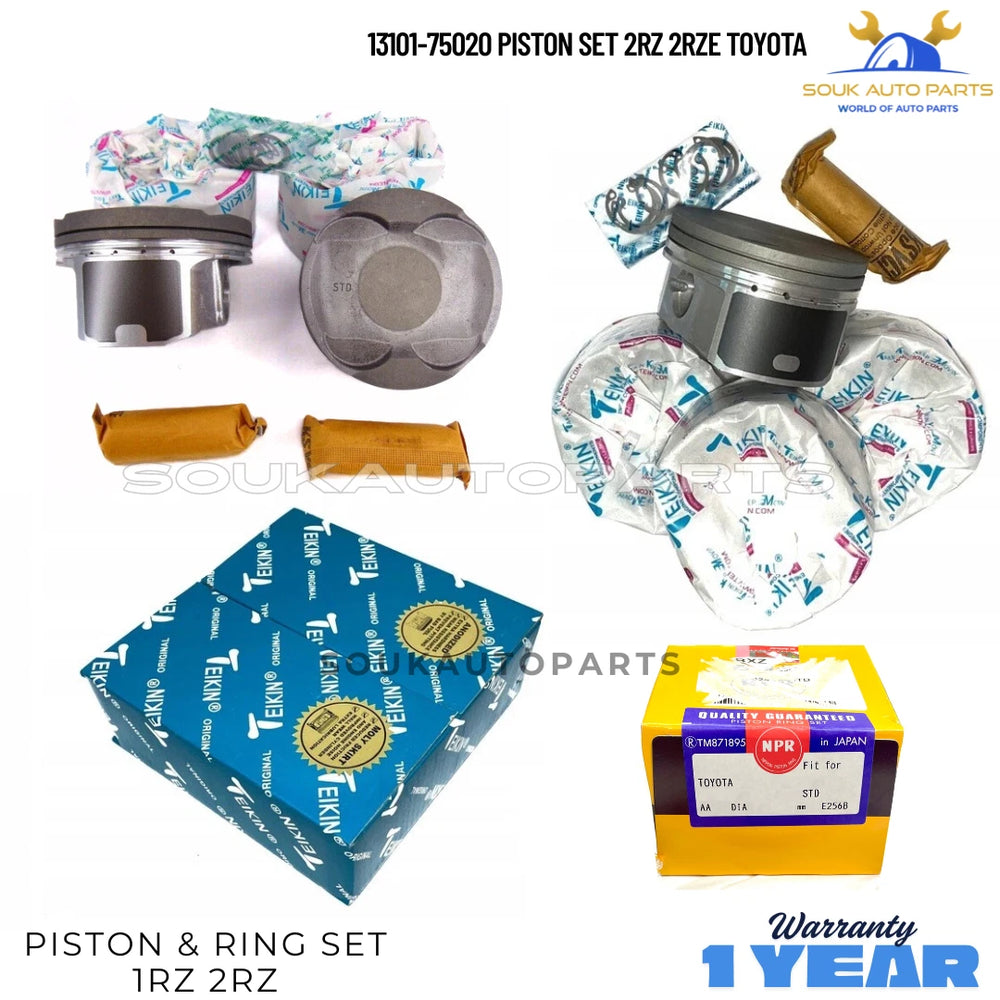

13101-75020 PISTON & RING SET 1RZ 2RZ 2RZE 95mm For Toyota HIACE REGIUS ACE

13101-75020 PISTON & RING SET 1RZ 2RZ 2RZE 95mm For Toyota HIACE REGIUS ACE

$150.00
$150.00
(-0%)
Subtotal: $150.00
SKU: 13101-75020 PISTON & RING SET 1RZ 2RZ 2RZE 95mm
Weight: 4.0 kg
Tags: / / / / / / / / / / /
Description

ESTIMATED DELIVERY TIME:

USA: Normally takes 3-5 Working Days Maximum.

UK & EUROPEAN UNION: 3-6 Working Days Maximum.

FOR OTHER DESTINATION: Within 1 Week Maximum.

ITEM DESCRIPTION:

Item: 13101-75020 PISTON & RING SET 95MM TOYOTA 1RZ 2RZ 2RZE

Part Number: PISTON: 46607, RING: SWT10245, RIK: 28315, 13101-75020, 1310175020

Condition: BRAND NEW HIGH QUALITY AFTERMARKET

Compatible Models: TOYOTA HIACE, REGIUS ACE

Manufacturer: TOYOTA AFTERMARKET

Warranty: 1 YEAR

Piston Diameters: STANDARD SIZE

BORE:

95.00mm

CD:

35.50mm

TL:

67.60mm

1ST RING:

1.75mm

2ND RING:

1.50mm

OIL RING:

4.00mm

PIN:

24.007mm



The part number 13101-75020 (also written as 1310175020) is a Genuine Toyota Engine Piston & Ring Set (Standard Size / STD). It is designed for Toyota's 4-cylinder 2RZ, 2RZ-E, and 2RZ-FE gasoline engines.

Technical Specifications

Feature Specification
Engine Compatibility Toyota 2RZ / 2RZ-E / 2RZ-FE (2.4L Inline-4)
Bore Size 95.00 mm (Standard / STD)
Piston Height ~67.5 mm
Piston Pin Dimensions 24 mm (Diameter) × 70 mm (Length)
Piston Material High-strength Aluminum Alloy
Ring Thicknesses 1st Ring: 1.75 mm | 2nd Ring: 1.5 mm | Oil Ring: 4.0 mm

Understanding the OEM Part Numbering

  • 13101-75020: Standard (STD) Bore (95.00 mm) factory piston assembly.

  • 13103-75080: +0.50 mm Oversize (O/S 0.50 / 95.50 mm) set, used when re-boring the cylinder block.

  • Engine Note: While some cross-reference catalogs list this set under 1RZ/2RZ groupings, 95.00 mm is the standard bore for 2.4L 2RZ engines. The 2.0L 1RZ engine uses a smaller 86.00 mm bore (13101-75010)
