23810-51021 RAIL ASSY, COMMON - FUEL INJECTION FOR TOYOTA 1VDFTV LAND CRUISER
23810-51021 RAIL ASSY, COMMON - FUEL INJECTION FOR TOYOTA 1VDFTV LAND CRUISER
23810-51021 RAIL ASSY, COMMON - FUEL INJECTION FOR TOYOTA 1VDFTV LAND CRUISER
23810-51021 RAIL ASSY, COMMON - FUEL INJECTION FOR TOYOTA 1VDFTV LAND CRUISER
23810-51021 RAIL ASSY, COMMON - FUEL INJECTION FOR TOYOTA 1VDFTV LAND CRUISER

23810-51021 RAIL ASSY, COMMON - FUEL INJECTION FOR TOYOTA 1VDFTV LAND CRUISER

$345.00
$345.00
(-0%)
Subtotal: $345.00
SKU: 23810-51021 FUEL INJECTION COMMON RAIL ASSY 1VD
Weight: 3.5 kg
Tags: / / / / / / / / /
Description

DISPATCHED TIME - 1 WORKING DAY

ESTIMATED DELIVERY TIME:

USA: Normally takes 3-5 Working Days Maximum.

UK & EUROPEAN UNION: 3-6 Working Days Maximum.

FOR OTHER DESTINATION: Within 1 Week Maximum.

ITEM DESCRIPTION:

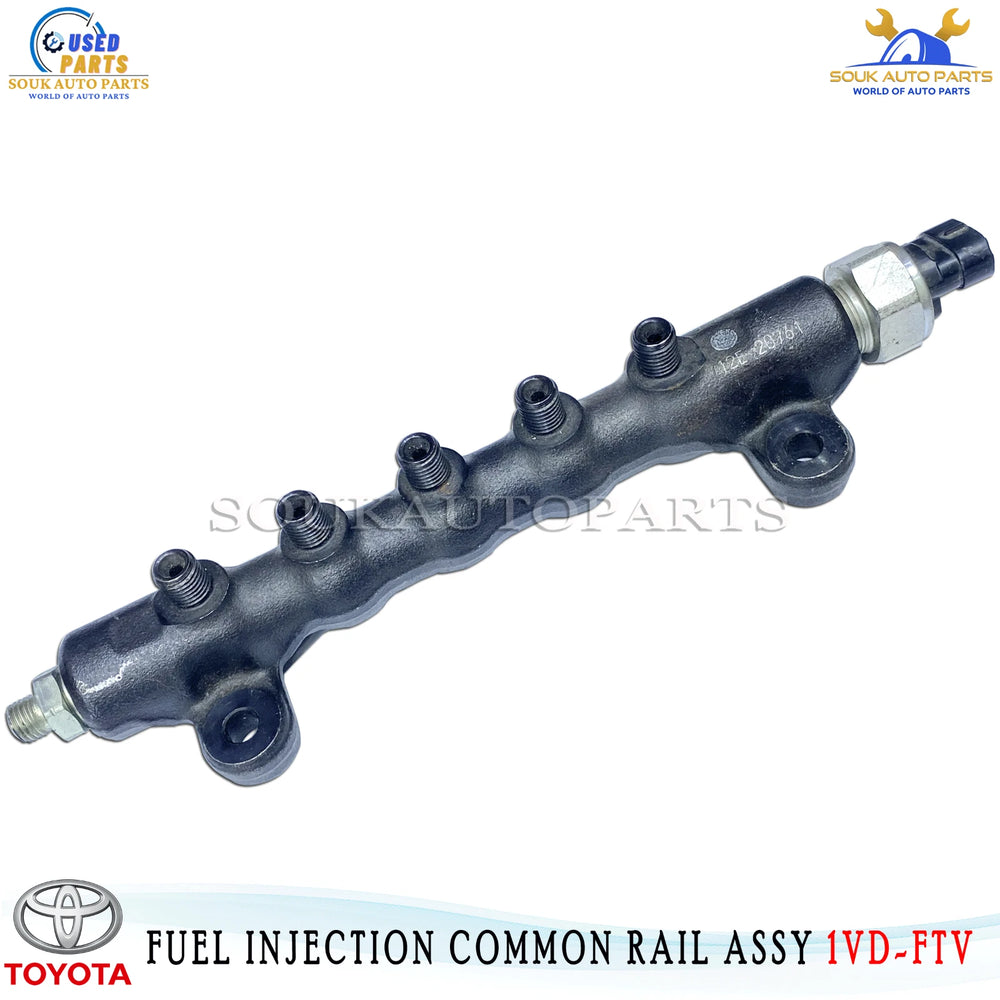

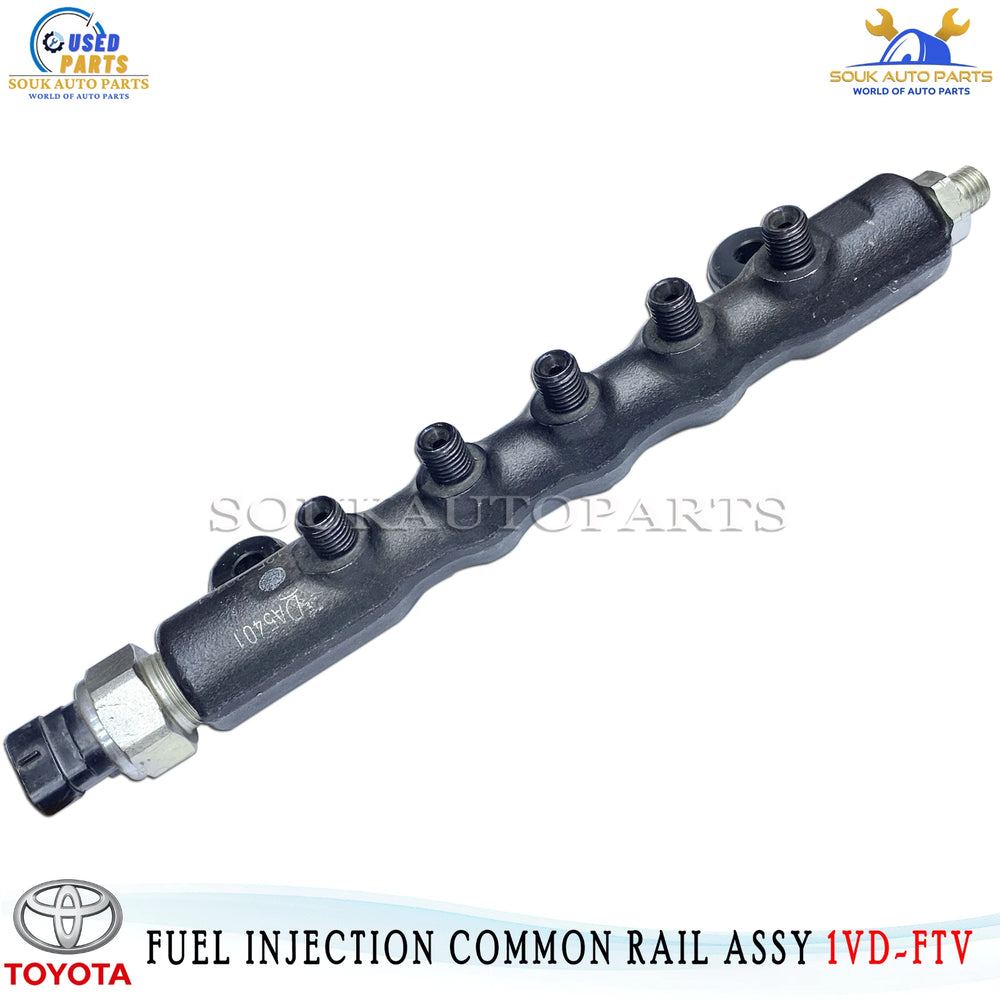

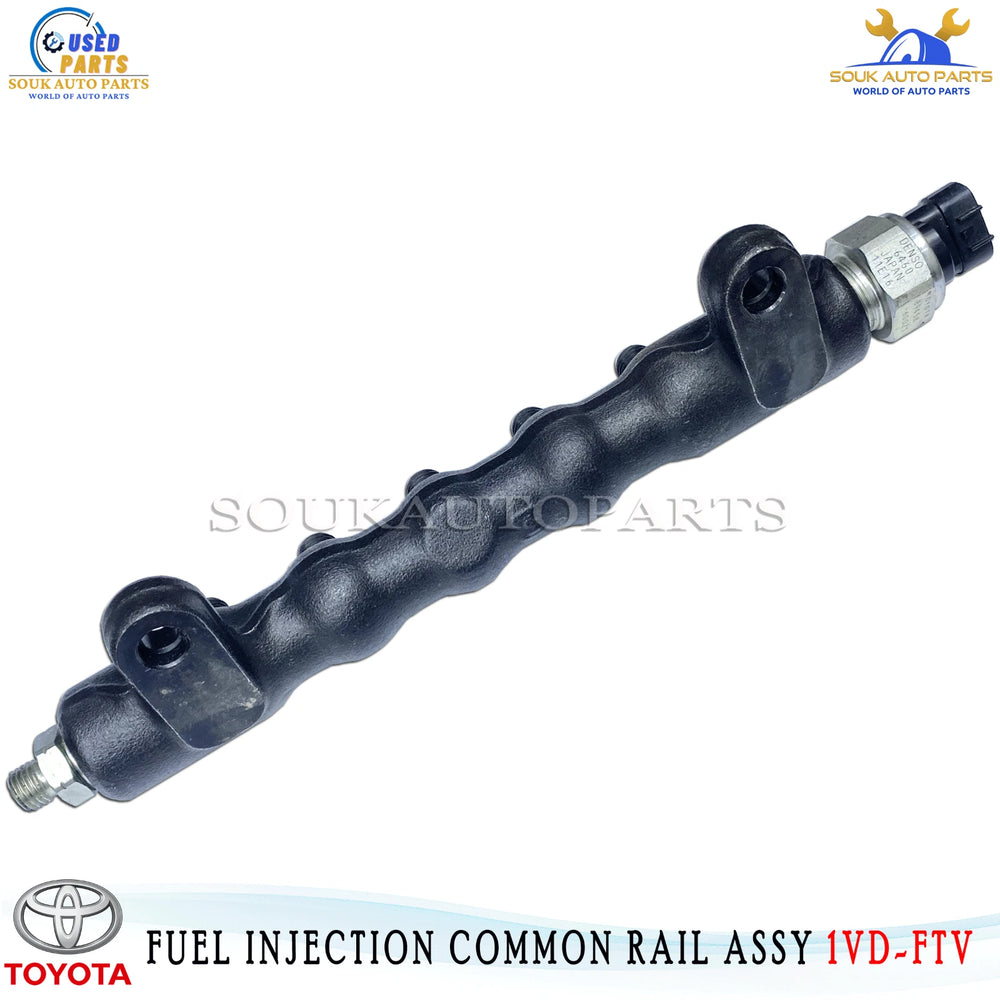

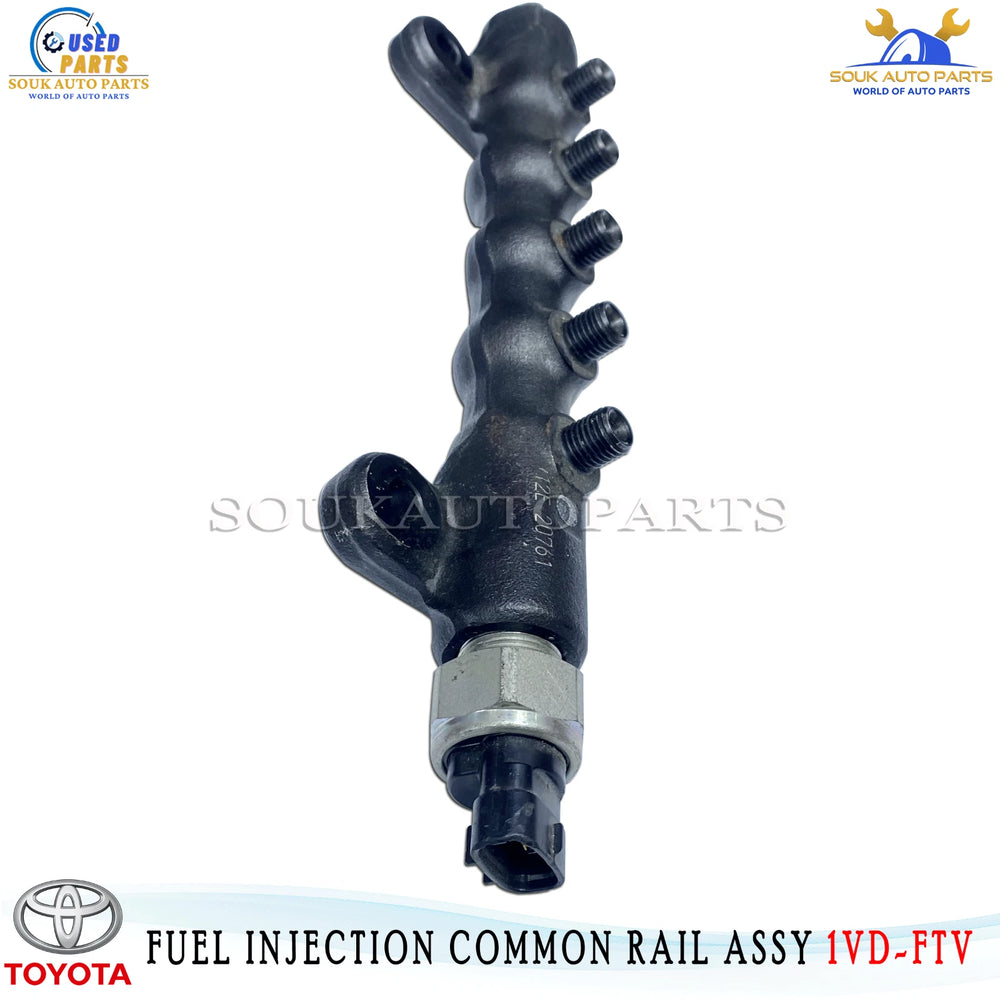

Item: 23810-51021 RAIL ASSY, COMMON-FUEL INJECTION 1VD-FTV

Engine code: 1VD-FTV 8V 4.5 LTR DIESEL

Part Number: 23810-51021, 2381051021

Condition: TOYOTA GENUIINE OEM USED

Compatible Models: TOYOTA LAND CRUISER, LEXUS 450D, LEXUS 570.

Warranty: 3 MONTHS WARRANTY.

Toyota OEM 23810-51021 is a high-pressure common rail fuel injection assembly engineered for Toyota vehicles powered by the 1VD-FTV 4.5-liter V8 D-4D turbo diesel engine.

Part Specifications

  • OEM Part Number: 23810-51021

  • Interchangeable Numbers: 23810-51020, 23810-51022

  • Component Type: High-Pressure Fuel Rail Sub-Assembly (Right-Hand / Bank 1 Rail)

  • Maximum Operating Pressure: Supports Denso common rail system pressures up to 1,800–2,000+ bar

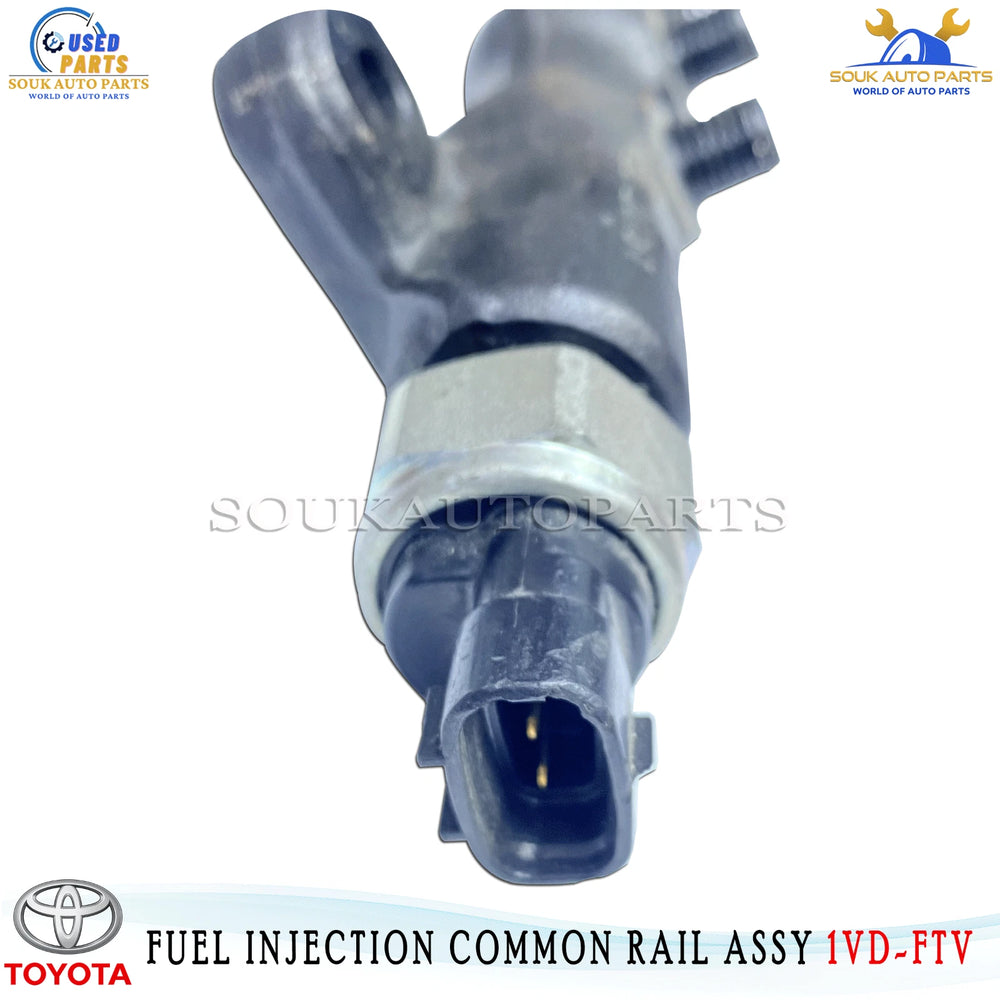

  • Included Components: Heavy-duty forged steel manifold rail, pre-mounted Fuel Rail Pressure (FRP) sensor, and mechanical pressure limiter (relief valve)

Engine Compatibility

  • 1VD-FTV: 4.5-Liter V8 D-4D Turbo Diesel (Single Turbo in 70-Series / Twin Turbo in 200-Series & LX450d)

Vehicle Applications

Vehicle Model Model Years Chassis Code Engine Configuration
Toyota Land Cruiser 200 2007–2021 VDJ200 4.5L V8 1VD-FTV Twin Turbo
Toyota Land Cruiser 70 Series (76 / 78 / 79) 2007–2024 VDJ76, VDJ78, VDJ79 4.5L V8 1VD-FTV Single Turbo
Lexus LX450d 2015–2021 VDJ201 4.5L V8 1VD-FTV Twin Turbo
