47201-3D390 CYLINDER SUB-ASSY, BRAKE MASTER For TOYOTA HILUX 1RZ 3L
47201-3D390 CYLINDER SUB-ASSY, BRAKE MASTER For TOYOTA HILUX 1RZ 3L
47201-3D390 CYLINDER SUB-ASSY, BRAKE MASTER For TOYOTA HILUX 1RZ 3L
47201-3D390 CYLINDER SUB-ASSY, BRAKE MASTER For TOYOTA HILUX 1RZ 3L
47201-3D390 CYLINDER SUB-ASSY, BRAKE MASTER For TOYOTA HILUX 1RZ 3L

47201-3D390 CYLINDER SUB-ASSY, BRAKE MASTER For TOYOTA HILUX 1RZ 3L

$39.00
$39.00
(-0%)
Subtotal: $39.00
SKU: 47201-3D390 CYLINDER SUB-ASSY, BRAKE MASTER
Weight: 1.0 kg
Tags: / / / / / / /
Description

DISPATCHED TIME - 1 WORKING DAY

ESTIMATED DELIVERY TIME:

USA: Normally takes 3-5 Working Days Maximum.

UK & EUROPEAN UNION: 3-6 Working Days Maximum.

FOR OTHER DESTINATION: Within 1 Week Maximum.

ITEM DESCRIPTION:

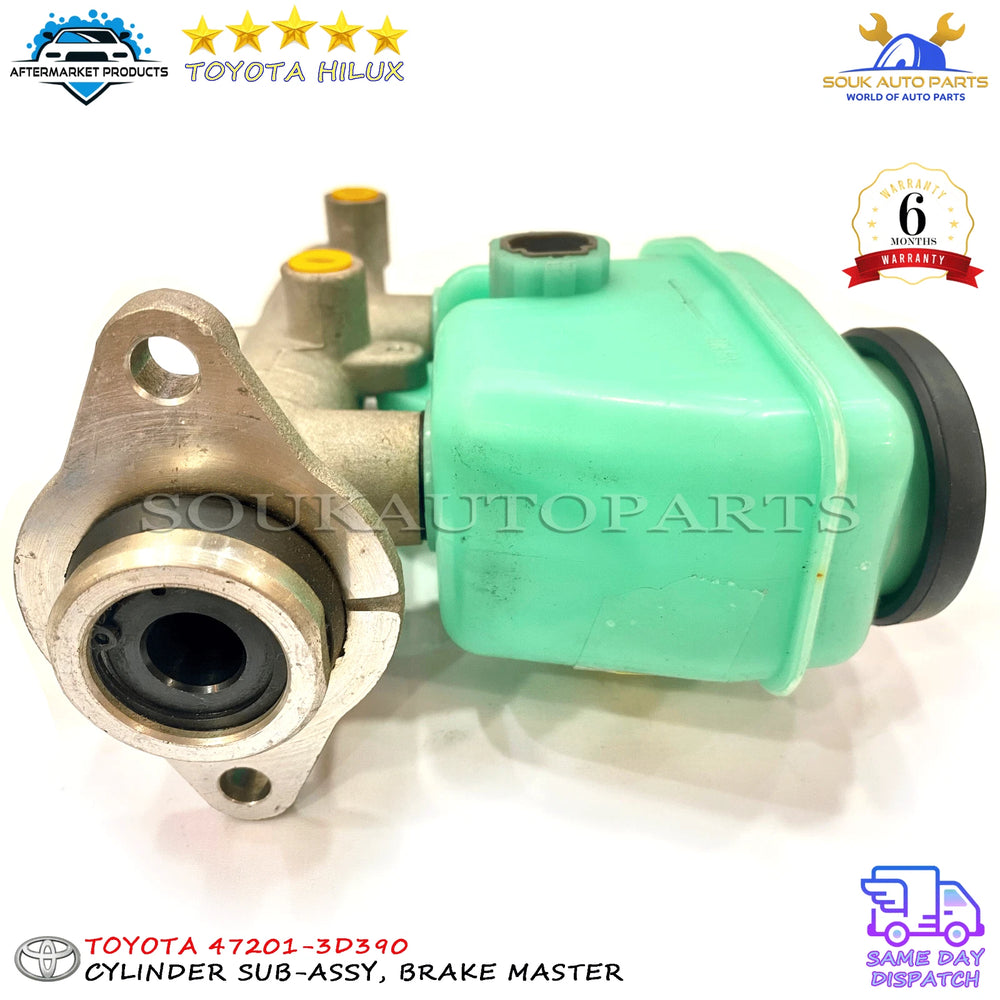

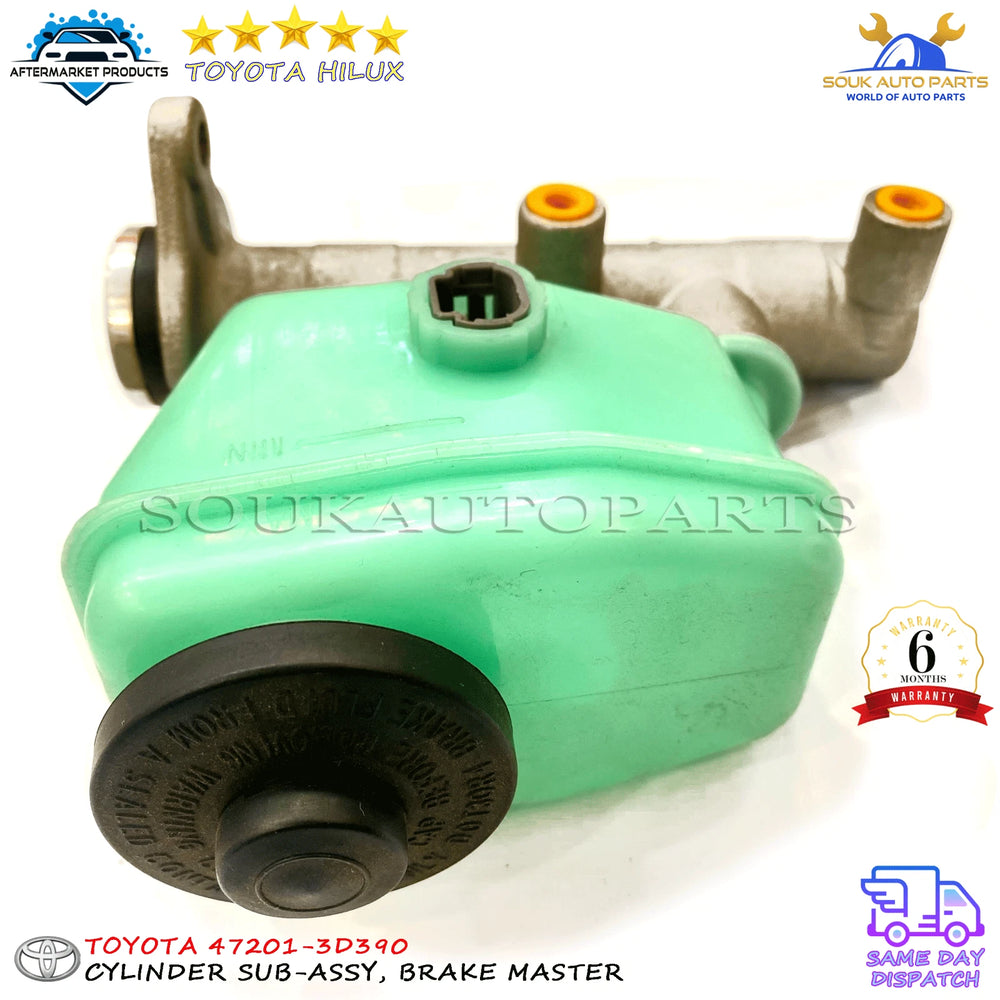

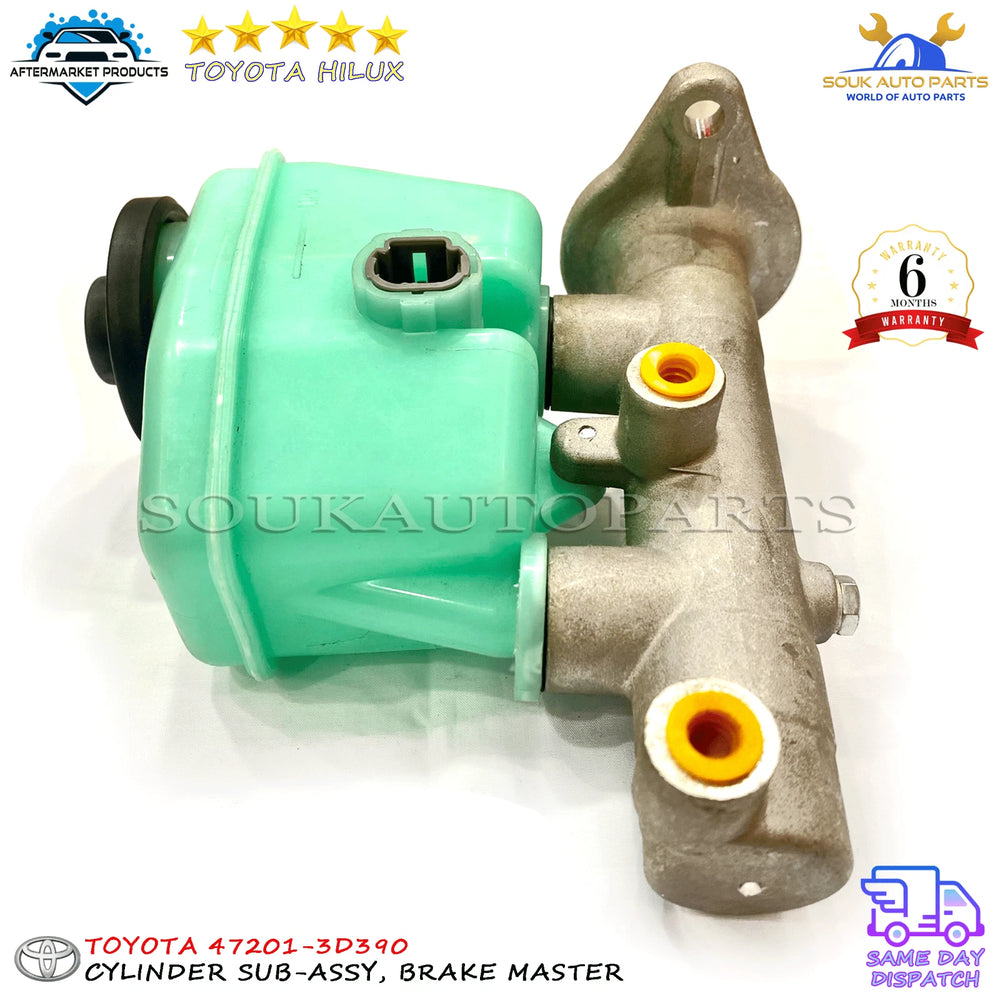

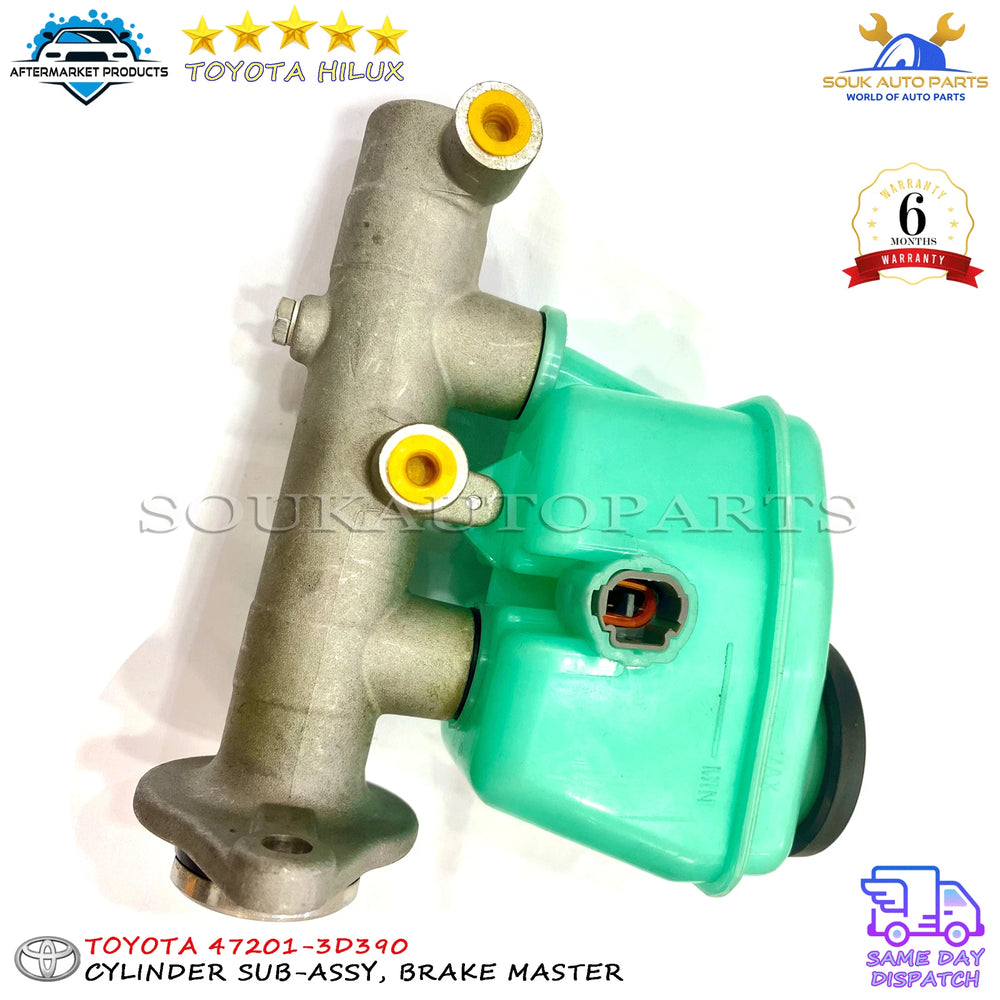

Item: 47201-3D390 CYLINDER SUB-ASSY, BRAKE MASTER TOYOTA 1RZ 3L

Engine code: 1RZ 3L 2.0 & 2.8 LTR PETROL & DIESEL

Part Number: 47201-3D390, 472013D390

Condition: BRAND NEW HIGH QUALITY AFTERMARKET

Compatible Models: TOYOTA HILUX

Warranty: 6 MONTHS WARRANTY.

Toyota OEM 47201-3D390 is a dual-circuit hydraulic brake master cylinder sub-assembly with an integrated fluid reservoir and level sensor, engineered for 6th-generation Toyota Hilux models powered by 1RZ and 3L engines.

Part Specifications

  • OEM Part Number: 47201-3D390

  • Interchangeable Numbers: 47201-3D460, 47201-60530, 47201-60640, 47201-60660

  • Piston Bore Diameter: 15/16 inch (23.8 mm)

  • Material: Cast Aluminum alloy cylinder body with a translucent plastic fluid reservoir

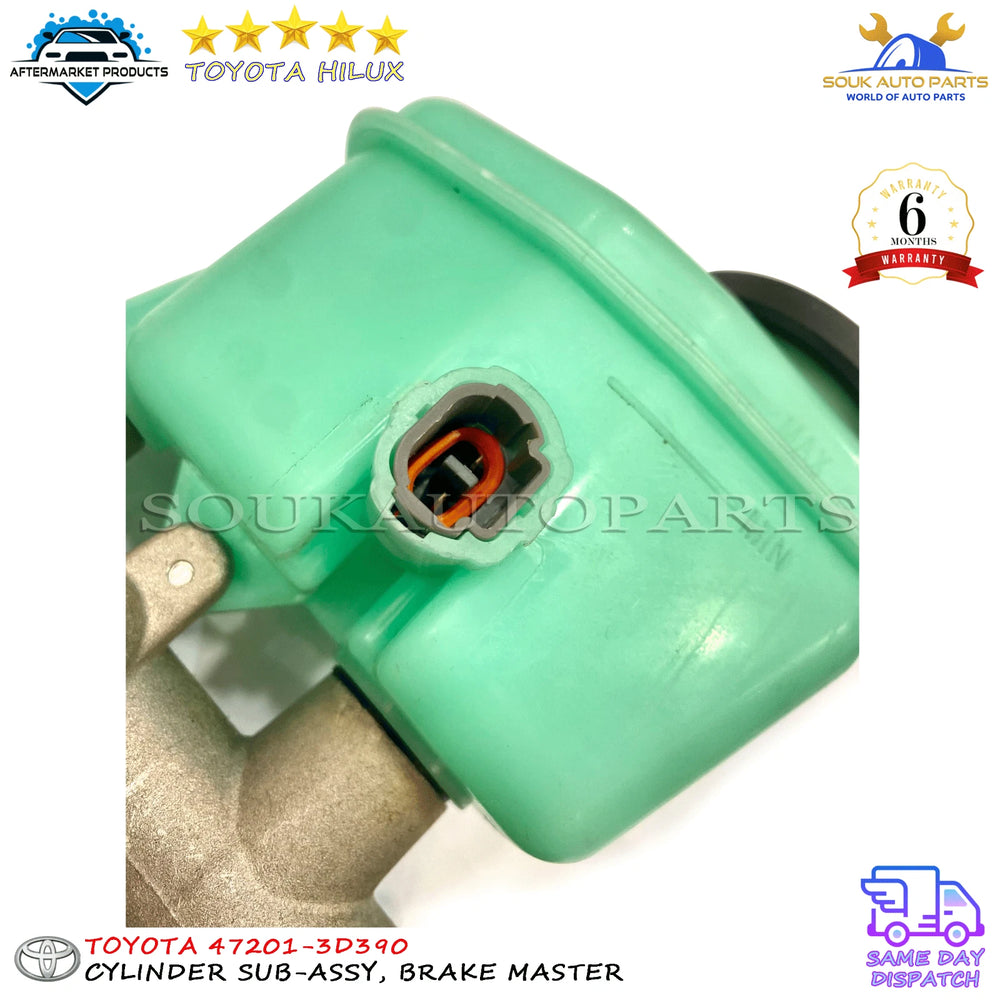

  • Included Components: Main cylinder housing, internal tandem pistons, seals, fluid reservoir, cap, and fluid level warning switch

Engine Compatibility

  • 1RZ / 1RZ-E: 2.0-Liter Inline-4 Gasoline

  • 3L: 2.8-Liter Inline-4 Naturally Aspirated Diesel

Vehicle Applications

Vehicle Model Model Years Chassis Code Engine
Toyota Hilux Pick-up 1997–2005 LN147, LN166, LN167, LN172, LN190 3L (2.8L Diesel)
Toyota Hilux Pick-up 1997–2004 RZN147, RZN149, RZN154 1RZ / 1RZ-E (2.0L Petrol)
Toyota 4Runner / Hilux Surf 1995–2002 VZN180, VZN185, KZN185 1KZ-TE / 5VZ-FE
Toyota Land Cruiser Prado 90 1996–2002 KZJ90, KZJ95, VZJ90, VZJ95 1KZ-TE / 5VZ-FE
