DAIDO (M9056A) MAIN BEARING SET 1Y 2Y 3Y For Toyota HIACE DYNA HILUX PETROL

DISPATCHED TIME - 1 WORKING DAY

ESTIMATED DELIVERY TIME:

USA: Normally takes 3-5 Working Days Maximum.

UK & EUROPEAN UNION: 3-6 Working Days Maximum.

FOR OTHER DESTINATION: Within 1 Week Maximum.

ITEM DESCRIPTION:

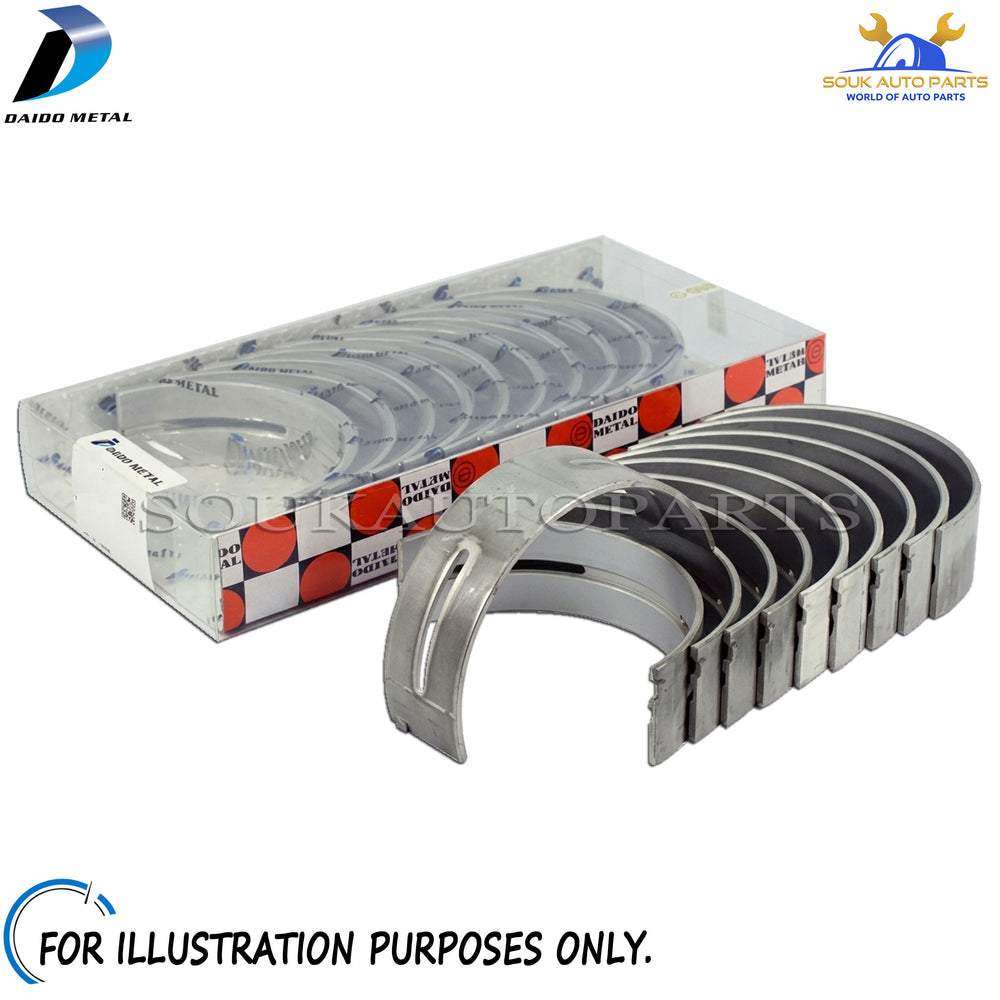

Item: MAIN BEARING SET (STD/0.25/0.50/1.00).

Engine code: 1Y 2Y 3Y 1.6 1.8 2.0 LTR PETROL

Part Number: M9056A, 11701-71020, 1170171020

Condition: NEW SET (AS ILLUSTRATED).

Brand: DAIDO MADE IN JAPAN.

Compatible Models: TOYOTA HIACE, DYNA, HILUX & TOYOACE/LITEACE.

Warranty: 3 MONTHS WARRANTY.

Note: THE PRODUCT IMAGES SHOWN ARE FOR ILLUSTRATION PURPOSES ONLY.

The Daido Metal M9056A (or M9056ASTD) is a main engine bearing set manufactured by Daido Metal Co., Ltd. for classic Toyota gasoline engines.

1. Compatible Engine Models

This bearing set fits the Toyota Y-series inline-4 gasoline engine family:

• 1Y (1.6L), 2Y (1.8L), 3Y (2.0L)

• (Also compatible with 4Y 2.2L engines sharing the same journal dimensions)

These engines are commonly found in commercial and utility vehicles produced from the late 1970s through the 1990s, including:

• Toyota HiAce

• Toyota Hilux

• Toyota TownAce / LiteAce

• Toyota Dyna

• Toyota Forklifts and industrial machinery running 1Y–4Y engines

2. Specifications (Daido Catalogue Data)

• Part Number: M9056A

• Size: STD (Standard Bore / Factory Dimension)

• Set Composition: 10 half-bearings (5 pairs for a 5-journal main bearing crankshaft)

• Crankshaft Journal Diameter (Shaft Dia.): ~58.000 mm

• Housing Bore: ~62.000 mm

• Bearing Wall Thickness: ~1.990 mm

• Bearing Width / Length: ~20.93 mm
