DAIDO (R5994A) CON ROD BEARING SET For Suzuki J24 2.4 LTR PETROL

DISPATCHED TIME - 1 WORKING DAY

ESTIMATED DELIVERY TIME:

USA: Normally takes 3-5 Working Days Maximum.

UK & EUROPEAN UNION: 3-6 Working Days Maximum.

FOR OTHER DESTINATION: Within 1 Week Maximum.

ITEM DESCRIPTION:

Item: CON ROD BEARING SET (0.50/0.75/1.00).

Engine code: J24 2.4 LTR PETROL

Part Number: R5994A, 12181-78K00, 12181-78K00-0A0

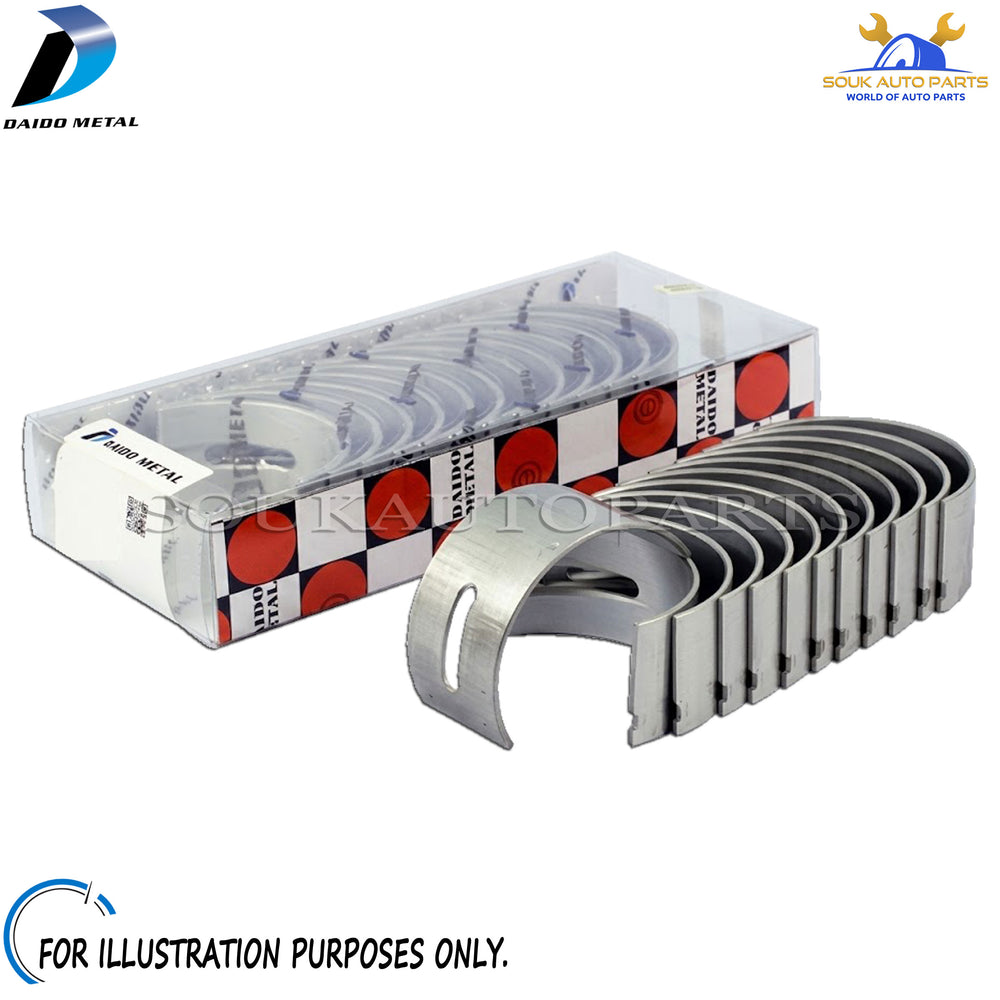

Condition: NEW SET (AS ILLUSTRATED).

Brand: DAIDO MADE IN JAPAN.

Compatible Models: SUZUKI

Warranty: 3 MONTHS WARRANTY.

Note: THE PRODUCT IMAGES SHOWN ARE FOR ILLUSTRATION PURPOSES ONLY.

DAIDO R5994A (or R5994ASTD for Standard size) is a high-quality connecting rod bearing set manufactured by Daido Metal Co., Ltd. (Japan) for the Suzuki 2.4L (J24B) 4-cylinder engine.

Key Specifications & Part Breakdown

• Manufacturer: Daido Metal (Japan)
• Daido Part Base Code: R5994A
• Size Designation: STD (Standard factory journal size)
• Engine Application: Suzuki J24B (2.4-liter inline 4-cylinder DOHC petrol engine)
• OEM Reference Numbers:
  • 12181-78K00
  • 12181-78K00-0A0 through 0E0
• Cross-Reference: Taiho R659A / CB-2416A
• Bearing Dimensions:
  • Crank Pin Journal Diameter: 50.00 mm
  • Housing Bore Diameter: 53.00 mm
  • Bearing Thickness: 1.485 mm
  • Bearing Width: 17.10 mm
• Quantity per Set: 8 bearing halves (4 pairs for a 4-cylinder engine)

Vehicle Application

This set fits Suzuki models equipped with the 2.4L J24B engine, including:

• Suzuki Grand Vitara / Escudo (2.4L, 2008–2019)
• Suzuki Kizashi (2.4L, 2009–2015)

Related Engine Components (Suzuki J24B)

If performing a complete lower-end rebuild on a J24B engine, the matching Daido parts include:

1. Main Bearing Set: Daido M5994A (OEM 12340-78K00 / 12341-78K00 series)
2. Thrust Washer Set: Daido C5994A / T5994A (OEM 12227-78K00)
3. Piston Pin Bushing Set: Daido P5994L (OEM 12165-78K00)
